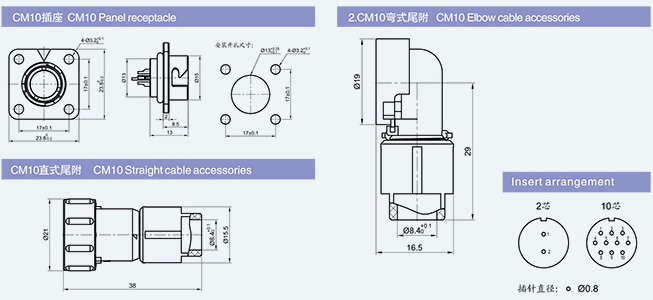

CM10 series small waterproof circular connectors, Waterproofdegree IP67, with push-pull lock and unlock rotating structure.easily lock and unlock. When separated only rotate according tothe direction the plug will be unlocked, CM10 has a solidstructureand the metal shell. CM10 series can be widely used inservomotor. This connector has the advantages of small volume, lightweight, waterproof.

Main technical characteristics

Operating temperature: -25~ +85°C

Relative humidity: 90% ~ 95%

Rated voltage: 200V

Rated Voltage: 3A

Withstand Voltage: 900V

Insulation resistance: 1000MΩ

Housing material: Zinc alloy

Insulator: Nylon

Endurance:500 cycles
