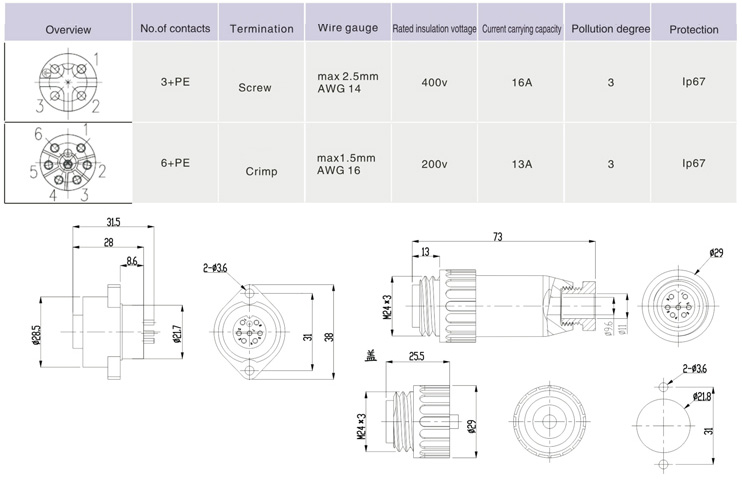

C16 circular connectors are designed to meet the high requirements of industrial apPlications under harsh environmental conditions.The range includes versions with screw，solder and crimp terminations.Housing material adopt PA66，Contacts material is gold plated or silver plated over brass.

Service environmental condition

Ambient temperature:-45°C~+85°C

Relative humidiry:if the temperature is 40°C it can reaches 93%

Libration:Libration frequency 10-500Hz acceleration reaches 100m/s²

Concussion:Acceleration reaches 250m/s²

Life duration:≥ 500times.
Rated current:10A
Working voltage400V
Withstanding voltage:1500V
Contact resistance:2.5mΩ
Lnsulation resistance:200oMΩ
