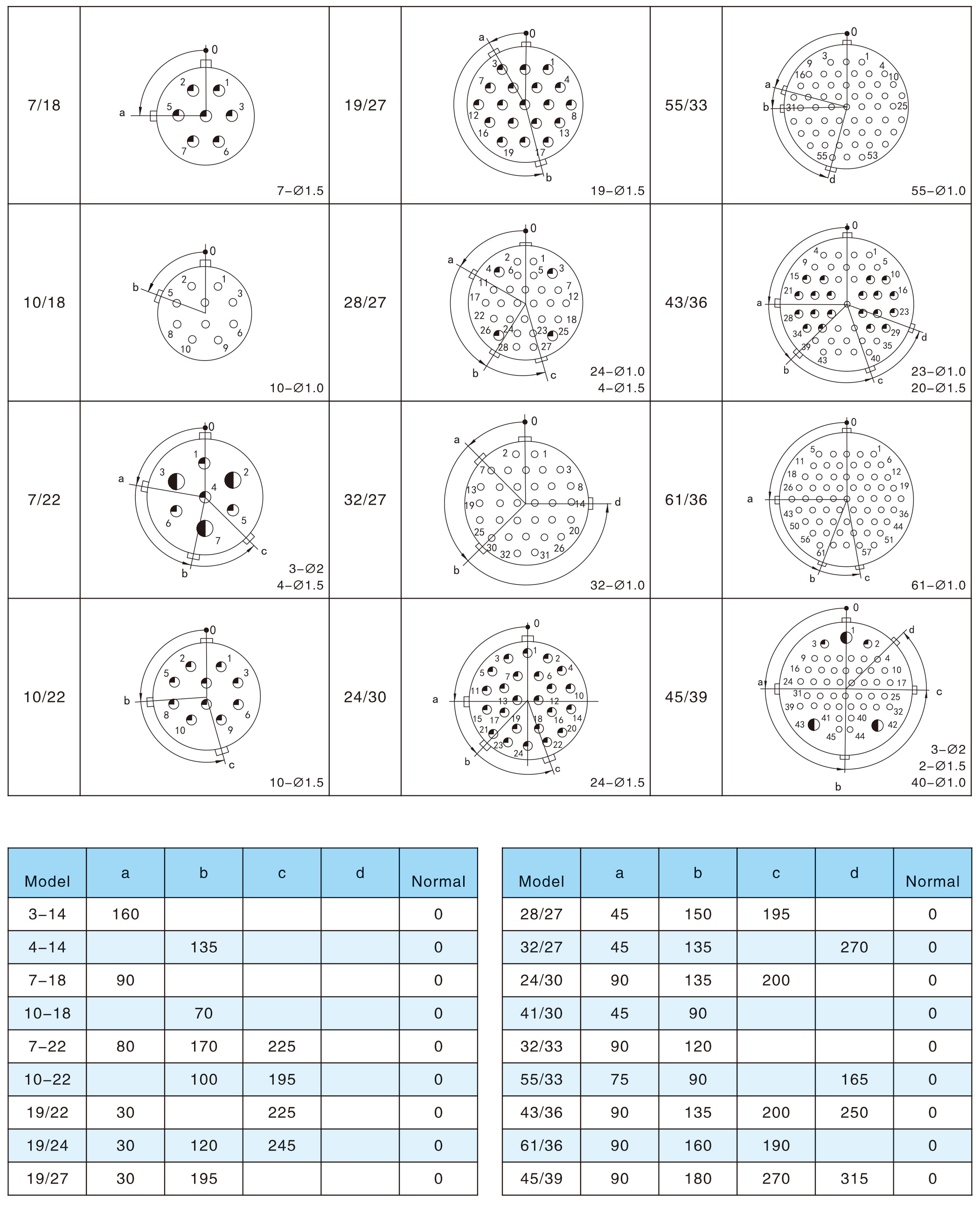

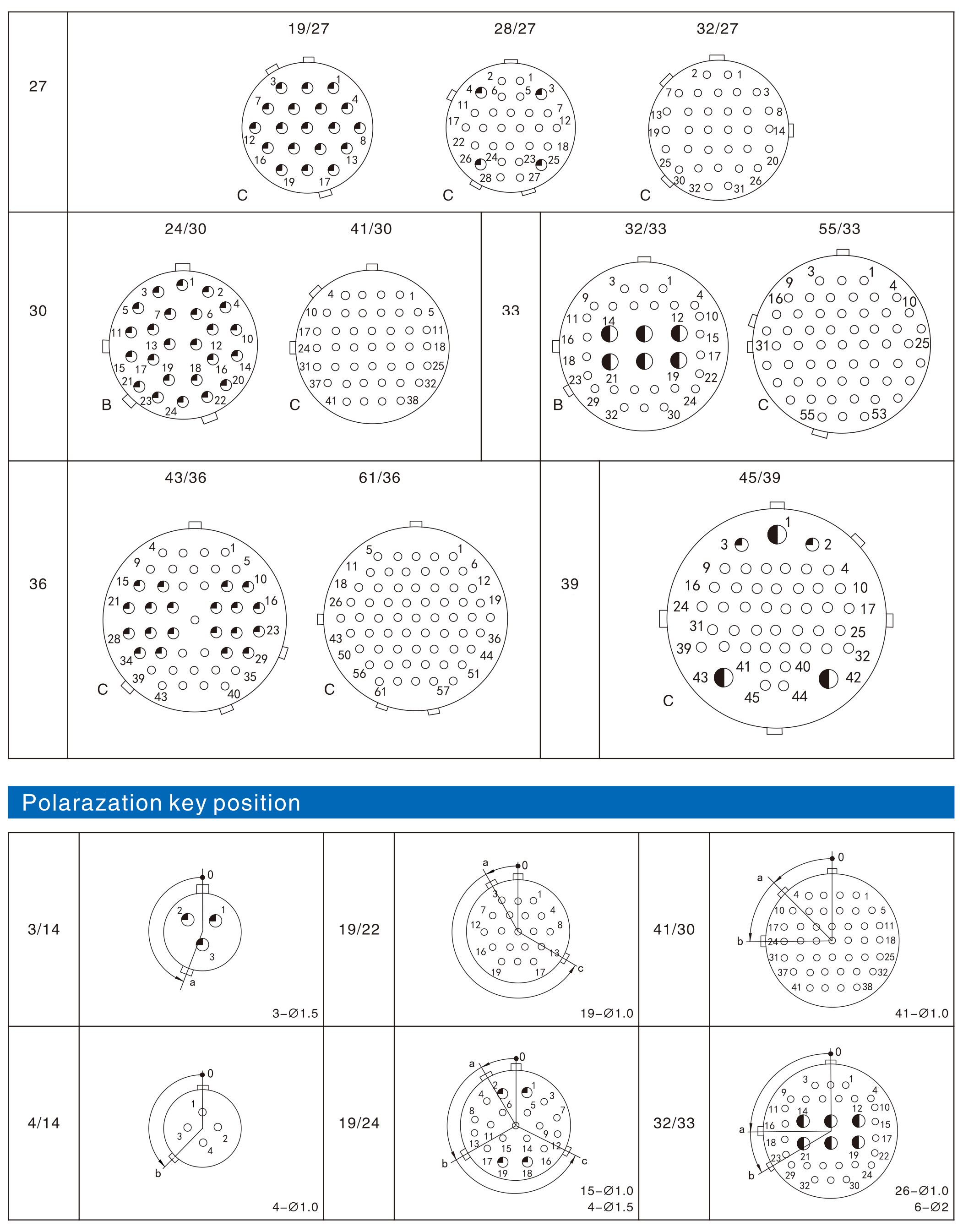

The ZH23 series connectors are designed for durability and environmentalresistance. They feature five-key positioning to prevent incorrect insertion anda bayonet quick connection. The contacts are adapt crimp type, designed foreasy release and disconnection. They are used in low-frequency AC and DCcircuits.

Technical characteristics

Ambient temperature: -60°C~+200°C

Vibration: acceleration of 40g ( 1-5000Hz )

Shock: acceleration of 500g ( once ); 150g ( multiple times )

Insulation resistance: > 5000M Ω

Salt spray resistance: 48h

Mechanical life: 500 cycles

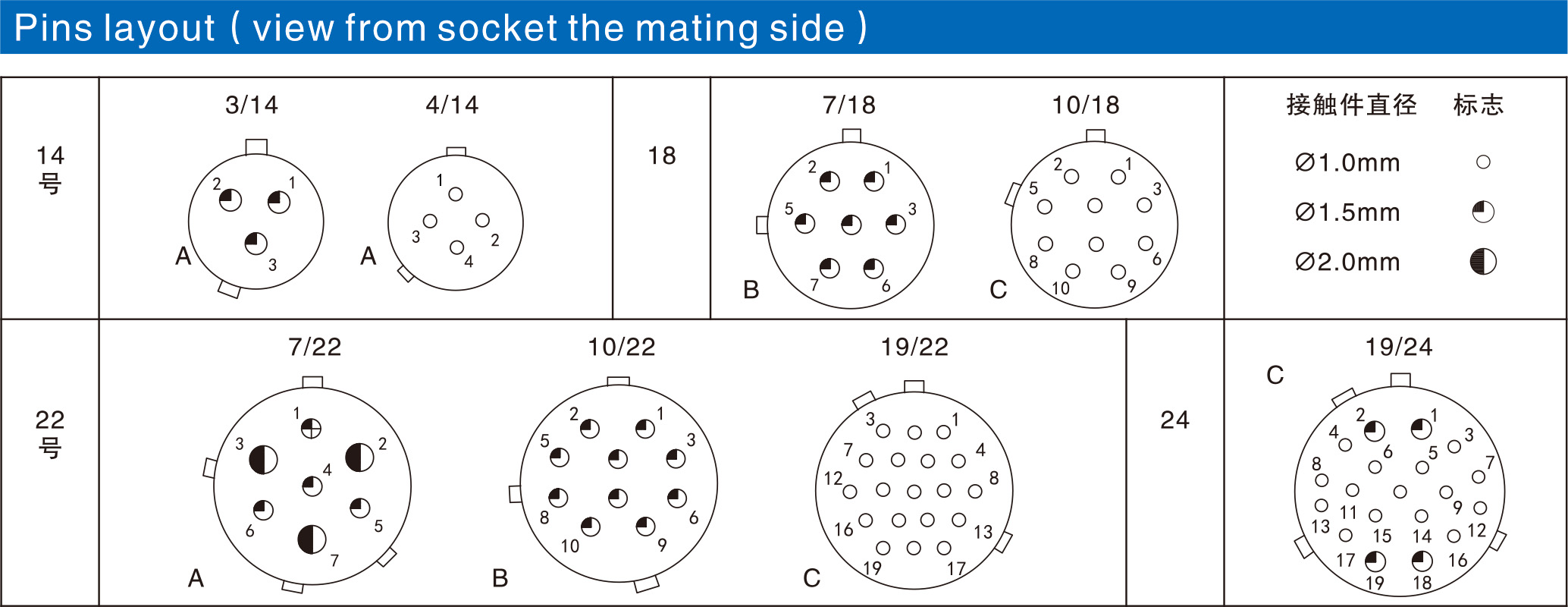

Tail attachments and connector types

1-Socket with simple tail attachment

2- Socket with straight clamp tail

4- Socket with bent clamp tail

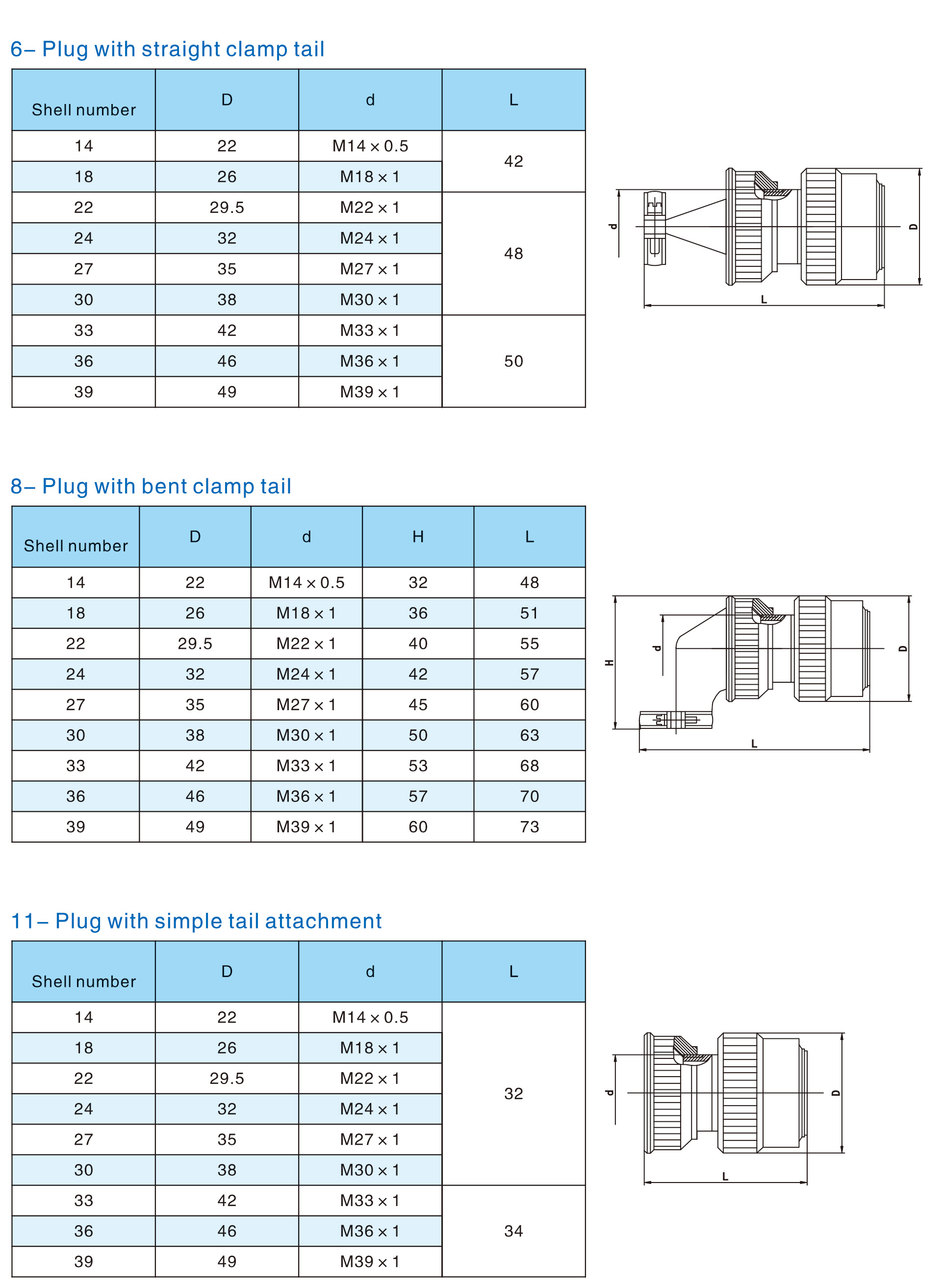

6- Plug with straight clamp tail

8- Plug with bent clamp tail

11- Plug with simple tail attachment

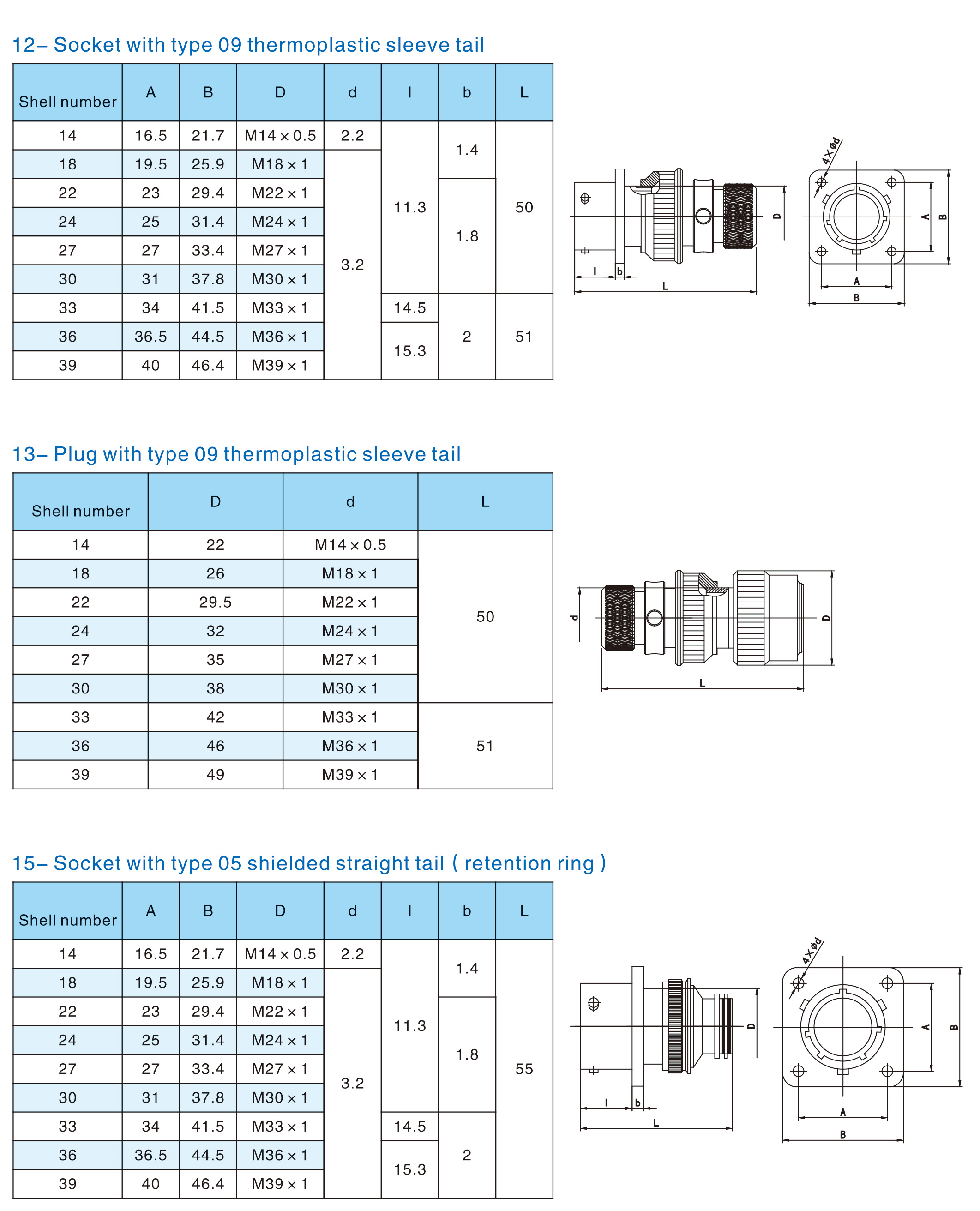

12- Socket with type 09 thermoplastic sleeve tail

13- Plug with type 09 thermoplastic sleeve tail

15- Socket with type 05 shielded straight tail (retention ring)

16- Plug with type 05 shielded straight tail (retention ring)

17- Socket with type 06 shielded bent tail (retention ring)

18-Plug with type 06 shielded bent tail (retention ring)

19- Socket with type 07 shielded simple tail

20- Plug with type 07 shielded simple tail

21- Socket with type 08 shielded straight clamp tail

22- Plug with type 08 shielded straight clamp tail

25- Socket with type 10 shielded bent tail

26- Plug with type 10 shielded bent tail

27- Socket with Type 11 shielded bent clamp tail

28- Plug with Type 11 shielded bent clamp tail
