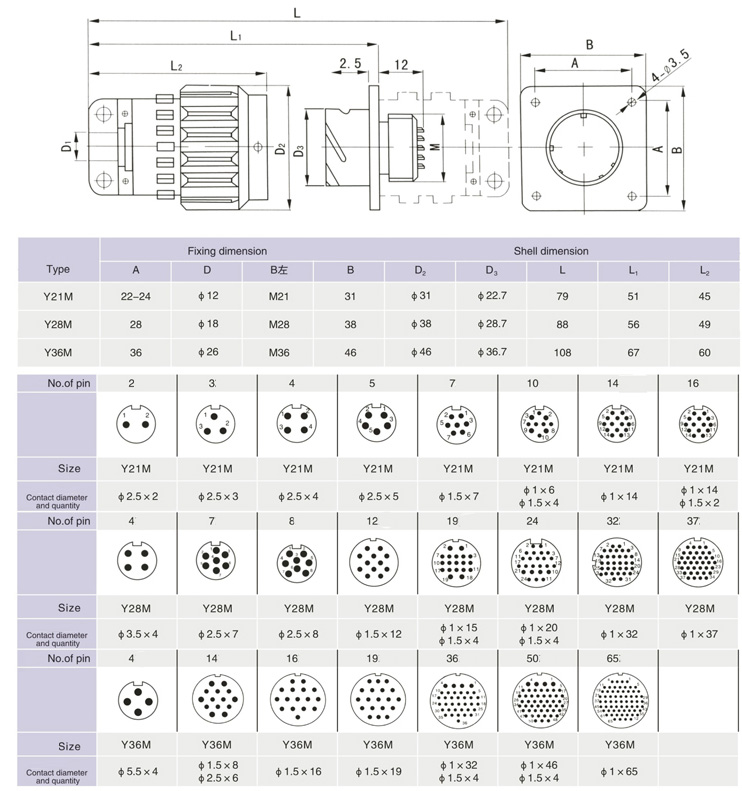

Y series connector include 21mm，28mm，36mm，dlfferent size has different poles.Y series circular connectors are widely used in llne connections between electrical equlpment,various instruments a nd meters.these connectors have the features of small volume， light weight，convenient application，high durability of plug and unplug，high conductivity and hlgh dielectric strength.

Products material:

Body:Aluminium alloy / Olive drab electroplating

Insulator:PBT plastic

Contacts:Gold plated over brass

Service environmental condition

Working temperature:-45°C~+85°C

Atmospheric pressure:101.33KPa~6.67Pa

Concussion:acceleration 980m/s²

Constant speed: acceleration245m/s²

Relative humidity:Temperature is 40  2 degrees,Centigrade reach 92~98%

Sine vibration: 10~2500Hz acceleration196m/s²

Collision:acceleration392m/s²
