Product Details
Product introduction: DF series circular electrical connector is a circular electrical connector
developed by DAFA Company, its connection mode is clasp type and thread type. The
fastener type conforms to the general specification of GJB101A-1997, environmental fast
separation small circular electrical connector, its connection mode is jammed connection,
the contact part termination form is welding, the product has fast connection and
separation, small volume, high density and good environmental resistance. High reliability
and other characteristics. The thread type conforms to the general specification for
gjb600-1988, threaded connection circular electrical connectors. The connection mode is
threaded connection, and the contact part termination form is welding, the product
reliability is good and the interchangeability is strong. Widely used in the industrial industry,
can meet the needs of different customers.
Operating conditions and main performance:
Working temperature:-55-+ 125C
Working pressure: 101.33kpa-4.39kpa
Relative humidity: 90%-95% (40 ±2 ℃)
Vibration: 10-2000 Hz, acceleration 196m/s ≤
Operating temperature:-55-+ 125 ℃ 02, relative humidity: 90%-95% (40 ±2 ℃) 04,
Vibration: 10-2000 Hz, acceleration.
Installation board insulator: thermoplastic;
Salt fog resistance: 48 h;
Waterproof grade: ip65 grade;
Shell material: aluminum alloy;
Surface treatment: aluminum alloy surface sandblasting chromium plating,
Contact parts: copper alloy (gold plating),
Mechanical life: 500 times;

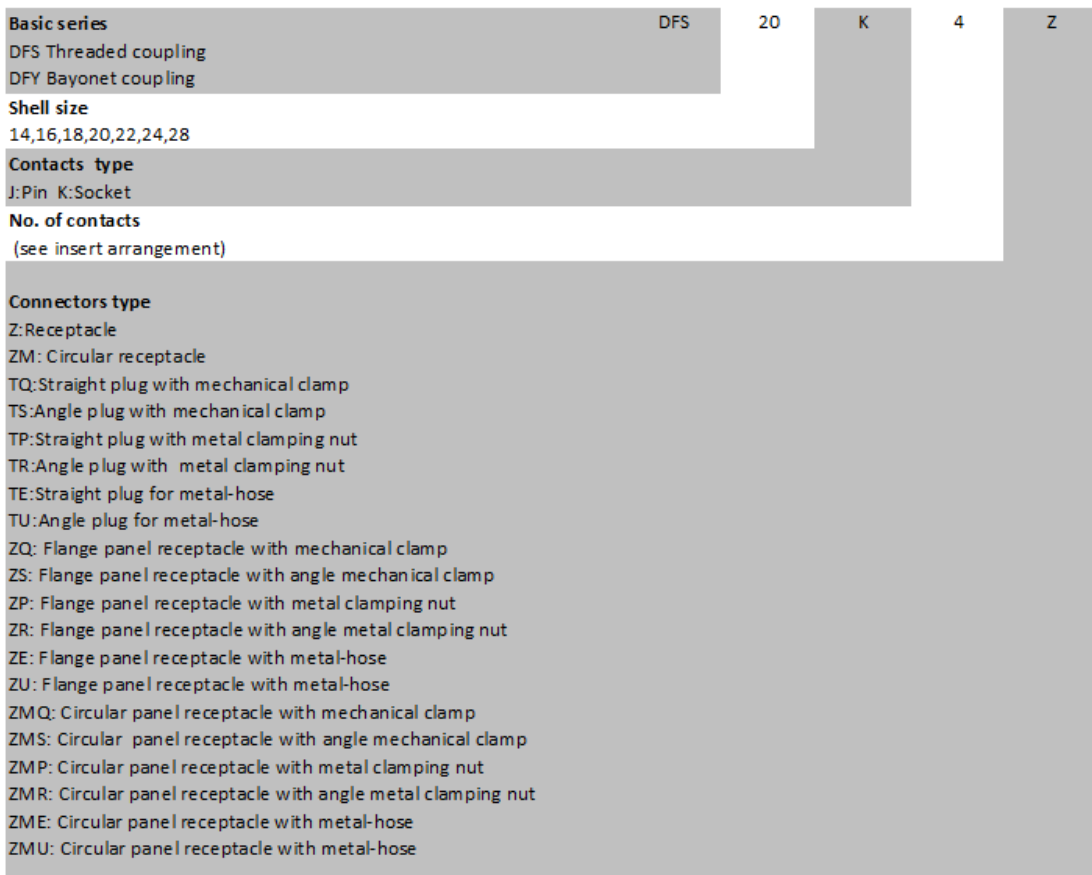

How to order
Dimensions.
TQ:STRAIGHT PLUG WITH MECHANICAL CLAMP
类型 Type |
外形及出线口尺寸 |
||
|
A |
B |
L |
DF14 |
22.4 |
5.5 |
52 |
DF16 |
24 |
7.3 |
58 |
DF18 |
28 |
7.3 |
58 |
DF20 |
28.2 |
9 |
63 |
DF22 |
30.2 |
9 |
68 |
DF24 |
34 |
9 |
68 |
DF28 |
37.4 |
10.5 |
72 |
TS:ANGLE PLUG WITH MECHANICAL CLAMP
类型 Type |
外形及出线口尺寸 |
|||
|
A |
B |
L |
H |
DF16 |
24 |
7.3 |
47 |
47 |
DF20 |
28.2 |
9 |
52 |
52 |
DF24 |
34 |
9 |
57 |
57 |
DF28 |
37.4 |
10.5 |
63 |
63 |
TP:STRAIGHT PLUG WITH METAL CLAMPING NUT
类型 Type |
外形及出线口尺寸 |
||
|
A |
B |
L |
DF16 |
24 |
9 |
55 |
DF20 |
28.2 |
11 |
60 |
DF24 |
34 |
11 |
65 |
DF28 |
37.4 |
12.5 |
70 |
TR: ANGLE PLUG WITH METAL CLAMPING NUT
类型 Type |
外形及出线口尺寸 |
|||
|
A |
B |
L |
H |
DF16 |
24 |
9 |
47 |
45 |
DF20 |
28.2 |
11 |
52 |
50 |
DF24 |
34 |
11 |
57 |
55 |
DF28 |
37.4 |
12.5 |
63 |
60 |
TE: STRAIGHT PLUG FOR METAL-HOSE
类型 Type |
外形及出线口尺寸 |
||
|
A |
B |
L |
DF16 |
24 |
10.5 |
45 |
DF20 |
28.2 |
12 |
50 |
DF24 |
34 |
12 |
55 |
DF28 |
37.4 |
14 |
60 |
TU: ANGLE PLUG FOR METAL-HOSE
类型 Type |
外形及出线口尺寸 |
|||
|
A |
B |
L |
H |
DF16 |
24 |
10.5 |
47 |
40 |
DF20 |
28.2 |
12 |
52 |
44 |
DF24 |
34 |
12 |
57 |
48 |
DF28 |
37.4 |
14 |
63 |
53 |
Z:RECEPTACLE (Bayonet coupling)
类型 type |
外形及安装尺寸 |
|||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
DFY14 |
24 |
17 |
3.2 |
13.9 |
14 |
26.5 |
16 |
14.5 |
DFY16 |
26 |
20 |
3.2 |
15.9 |
14.5 |
27.5 |
18 |
16.5 |
DFY18 |
27 |
20 |
3.5 |
17.9 |
14.5 |
27.5 |
21 |
18.5 |
DFY20 |
29 |
22 |
3.2 |
19.8 |
14.5 |
27.5 |
21.7 |
20.5 |
DFY22 |
30 |
23 |
3.2 |
21.8 |
11.5 |
24.5 |
23.8 |
22.5 |
DFY24 |
32 |
26 |
3.2 |
23.8 |
14.5 |
27.5 |
25.7 |
24.5 |
DFY28 |
36 |
30 |
3.2 |
27.5 |
14.5 |
27.5 |
29.5 |
28.5 |
Z: RECEPTACLE (Threaded coupling)
类型 type |
外形及安装尺寸 |
|||||||
|
A |
B |
C |
D |
E |
F |
M |
H |
DFS14 |
24 |
17 |
3.2 |
13.9 |
14 |
26.5 |
M16×1.0 |
14.5 |
DFS16 |
26 |
20 |
3.2 |
15.9 |
14.5 |
27.5 |
M18×1.0 |
16.5 |
DFS18 |
27 |
20 |
3.5 |
17.9 |
14.5 |
27.5 |
M21×1.0 |
18.5 |
DFS20 |
29 |
22 |
3.2 |
19.8 |
14.5 |
27.5 |
M22×1.0 |
20.5 |
DFS22 |
30 |
23 |
3.2 |
21.8 |
11.5 |
24.5 |
M24×1.0 |
22.5 |
DFS24 |
32 |
26 |
3.2 |
23.8 |
14.5 |
27.5 |
M26×1.0 |
24.5 |
DFS28 |
36 |
30 |
3.2 |
27.5 |
14.5 |
27.5 |
M30×1.0 |
28.5 |
四、INSERT ARRANGEMENT
ZMQ: CIRCULAR PANEL RECEPTACLE WITH MECHANICAL CLAMP (Bayonet coupling)
类型 type |
外形及安装尺寸 Dimensions |
|||
|
B |
D |
G |
L |
DF14 |
5.5 |
20 |
16 |
50 |
DF16 |
7.3 |
22 |
18 |
50 |
DF18 |
7.3 |
24 |
21 |
54 |
DF20 |
9 |
26 |
21.7 |
54 |
DF22 |
9 |
28 |
23.8 |
59 |
DF24 |
9 |
30 |
25.7 |
59 |
DF28 |
10.5 |
34 |
29.5 |
65 |
ZMS : CIRCULAR PANEL RECEPTACLE WITH ANGLE MECHANICAL CLAMP (Bayonet coupling )
类型 type |
外形及安装尺寸 Dimensions |
|||
|
B |
D |
M |
L |
DF14 |
5.5 |
20 |
M16×1.0 |
50 |
DF16 |
7.3 |
22 |
M18×1.0 |
50 |
DF18 |
7.3 |
24 |
M21×1.0 |
54 |
DF20 |
9 |
26 |
M22×1.0 |
54 |
DF22 |
9 |
28 |
M24×1.0 |
59 |
DF24 |
9 |
30 |
M26×1.0 |
59 |
DF28 |
10.5 |
34 |
M30×1.0 |
65 |
ZMS : CIRCULAR PANEL RECEPTACLE WITH ANGLE MECHANICAL CLAMP (Threaded coupling )
类型 type |
外形及安装尺寸 Dimensions |
||||
|
B |
D |
G |
H |
L |
DF16 |
7.3 |
22 |
18 |
47 |
52 |
DF20 |
9 |
26 |
21.7 |
52 |
57 |
DF24 |
9 |
30 |
25.7 |
57 |
59 |
DF28 |
10.5 |
34 |
29.5 |
63 |
61 |
ZMS : CIRCULAR PANEL RECEPTACLE WITH ANGLE MECHANICAL CLAMP (Threaded coupling )
类型 type |
外形及安装尺寸 Dimensions |
||||
|
B |
D |
M |
H |
L |
DF16 |
7.3 |
22 |
M18×1.0 |
47 |
52 |
DF20 |
9 |
26 |
M22×1.0 |
52 |
57 |
DF24 |
9 |
30 |
M26×1.0 |
57 |
59 |
DF28 |
10.5 |
34 |
M30×1.0 |
63 |
61 |
ZMP: Circular panel receptacle with metal clamping nut (Bayonet coupling)
类型 type |
外形及安装尺寸 Dimensions |
|||
|
B |
D |
G |
L |
DF16 |
7.3 |
22 |
18 |
49 |
DF20 |
9 |
26 |
21.7 |
54 |
DF24 |
9 |
30 |
25.7 |
59 |
DF28 |
10.5 |
34 |
29.5 |
64 |
ZMP: Circular panel receptacle with metal clamping nut (Threaded coupling )
类型 type |
外形及安装尺寸 Dimensions |
|||
|
B |
D |
M |
L |
DF16 |
7.3 |
22 |
M18×1.0 |
49 |
DF20 |
9 |
26 |
M22×1.0 |
54 |
DF24 |
9 |
30 |
M26×1.0 |
59 |
DF28 |
10.5 |
34 |
M30×1.0 |
64 |
ZMR: Circular panel receptacle with angle metal clamping nut (Bayonet coupling )
类型 type |
外形及安装尺寸 Dimensions |
||||
|
B |
D |
G |
H |
L |
DF16 |
7.3 |
22 |
18 |
47 |
52 |
DF20 |
9 |
26 |
21.7 |
52 |
57 |
DF24 |
9 |
30 |
25.7 |
57 |
59 |
DF28 |
10.5 |
34 |
29.5 |
63 |
61 |
ZMR: Circular panel receptacle with angle metal clamping nut (Threaded coupling )
类型 type |
外形及安装尺寸 Dimensions |
||||
|
B |
D |
M |
H |
L |
DF16 |
7.3 |
22 |
M18×1.0 |
47 |
52 |
DF20 |
9 |
26 |
M22×1.0 |
52 |
57 |
DF24 |
9 |
30 |
M26×1.0 |
57 |
59 |
DF28 |
10.5 |
34 |
M30×1.0 |
63 |
61 |
ZME: Circular panel receptacle with metal-hose (Bayonet coupling)
类型 type |
外形及安装尺寸 Dimensions |
|||
|
B |
D |
G |
L |
DF16 |
7.3 |
22 |
18 |
49 |
DF20 |
9 |
26 |
21.7 |
54 |
DF24 |
9 |
30 |
25.7 |
59 |
DF28 |
10.5 |
34 |
29.5 |
64 |
ZME: Circular panel receptacle with metal-hose (Threaded coupling)
类型 type |
外形及安装尺寸 Dimensions |
|||
|
B |
D |
M |
L |
DF16 |
7.3 |
22 |
M18×1.0 |
49 |
DF20 |
9 |
26 |
M22×1.0 |
54 |
DF24 |
9 |
30 |
M26×1.0 |
59 |
DF28 |
10.5 |
34 |
M30×1.0 |
64 |
ZMU: Circular panel receptacle with metal-hose (Bayonet coupling)
类型 type |
外形及安装尺寸 Dimensions |
||||
|
B |
D |
G |
H |
L |
DF16 |
7.3 |
22 |
18 |
47 |
52 |
DF20 |
9 |
26 |
21.7 |
52 |
57 |
DF24 |
9 |
30 |
25.7 |
57 |
59 |
DF28 |
10.5 |
34 |
29.5 |
63 |
61 |
ZMU: Circular panel receptacle with metal-hose (Threaded coupling)
类型 type |
外形及安装尺寸 Dimensions |
||||
|
B |
D |
M |
H |
L |
DF16 |
7.3 |
22 |
M18×1.0 |
47 |
52 |
DF20 |
9 |
26 |
M22×1.0 |
52 |
57 |
DF24 |
9 |
30 |
M26×1.0 |
57 |
59 |
DF28 |
10.5 |
34 |
M30×1.0 |
63 |
61 |
ZQ: Flange panel receptacle with mechanical clamp (Bayonet coupling)
类型 type |
外形及安装尺寸 Dimensions |
|||||
|
A |
B |
C |
D |
G |
L |
DF14 |
24 |
17 |
3.2 |
5.5 |
16 |
50 |
DF16 |
26 |
20 |
3.2 |
7.3 |
18 |
50 |
DF18 |
27 |
20 |
3.5 |
7.3 |
21 |
54 |
DF20 |
29 |
22 |
3.2 |
9 |
21.7 |
54 |
DF22 |
30 |
23 |
3.2 |
9 |
23.8 |
59 |
DF24 |
32 |
26 |
3.2 |
9 |
25.7 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
29.5 |
65 |
ZQ: Flange panel receptacle with mechanical clamp (Threaded coupling)
类型 type |
外形及安装尺寸 Dimensions |
|||||
|
A |
B |
C |
D |
M |
L |
DF14 |
24 |
17 |
3.2 |
5.5 |
M16×1.0 |
50 |
DF16 |
26 |
20 |
3.2 |
7.3 |
M18×1.0 |
50 |
DF18 |
27 |
20 |
3.5 |
7.3 |
M21×1.0 |
54 |
DF20 |
29 |
22 |
3.2 |
9 |
M22×1.0 |
54 |
DF22 |
30 |
23 |
3.2 |
9 |
M24×1.0 |
59 |
DF24 |
32 |
26 |
3.2 |
9 |
M26×1.0 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
M30×1.0 |
65 |
ZS: Flange panel receptacle with angle mechanical clamp (Bayonet coupling )
类型 type |
外形及安装尺寸 Dimensions |
||||||
|
A |
B |
C |
D |
G |
H |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
18 |
49 |
52 |
DF20 |
29 |
22 |
3.2 |
9 |
21.7 |
54 |
57 |
DF24 |
32 |
26 |
3.2 |
9 |
25.7 |
59 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
29.5 |
65 |
61 |
ZS: Flange panel receptacle with angle mechanical clamp (Threaded coupling )
类型 type |
外形及安装尺寸 Dimensions |
||||||
|
A |
B |
C |
D |
M |
H |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
M18×1.0 |
49 |
52 |
DF20 |
29 |
22 |
3.2 |
9 |
M22×1.0 |
54 |
57 |
DF24 |
32 |
26 |
3.2 |
9 |
M26×1.0 |
59 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
M30×1.0 |
65 |
61 |
ZP: Flange panel receptacle with metal clamping nut (Bayonet coupling
类型 type |
外形及安装尺寸 Dimensions |
|||||
|
A |
B |
C |
D |
G |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
18 |
49 |
DF20 |
29 |
22 |
3.2 |
9 |
21.7 |
54 |
DF24 |
32 |
26 |
3.2 |
9 |
25.7 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
29.5 |
64 |
ZP: Flange panel receptacle with metal clamping nut (Threaded coupling )
类型 type |
外形及安装尺寸 Dimensions |
|||||
|
A |
B |
C |
D |
M |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
M18×1.0 |
49 |
DF20 |
29 |
22 |
3.2 |
9 |
M22×1.0 |
54 |
DF24 |
32 |
26 |
3.2 |
9 |
M26×1.0 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
M30×1.0 |
64 |
ZR: Flange panel receptacle with angle metal clamping nut (Bayonet coupling)
类型 type |
外形及安装尺寸 Dimensions |
||||||
|
A |
B |
C |
D |
G |
H |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
18 |
49 |
52 |
DF20 |
29 |
22 |
3.2 |
9 |
21.7 |
54 |
57 |
DF24 |
32 |
26 |
3.2 |
9 |
25.7 |
59 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
29.5 |
65 |
61 |
ZR: Flange panel receptacle with angle metal clamping nut (Threaded coupling)
类型 type |
外形及安装尺寸 Dimensions |
||||||
|
A |
B |
C |
D |
M |
H |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
M18×1.0 |
49 |
52 |
DF20 |
29 |
22 |
3.2 |
9 |
M22×1.0 |
54 |
57 |
DF24 |
32 |
26 |
3.2 |
9 |
M26×1.0 |
59 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
M30×1.0 |
65 |
61 |
ZE: Flange panel receptacle with metal-hose (Bayonet coupling )
类型 type |
外形及安装尺寸 Dimensions |
|||||
|
A |
B |
C |
D |
G |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
18 |
49 |
DF20 |
29 |
22 |
3.2 |
9 |
21.7 |
54 |
DF24 |
32 |
26 |
3.2 |
9 |
25.7 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
29.5 |
64 |
ZE: Flange panel receptacle with metal-hose (Threaded coupling)
类型 type |
外形及安装尺寸 Dimensions |
|||||
|
A |
B |
C |
D |
M |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
M18×1.0 |
49 |
DF20 |
29 |
22 |
3.2 |
9 |
M22×1.0 |
54 |
DF24 |
32 |
26 |
3.2 |
9 |
M26×1.0 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
M30×1.0 |
64 |
ZU: Flange panel receptacle with metal-hose (Bayonet coupling )
类型 type |
外形及安装尺寸 Dimensions |
||||||
|
A |
B |
C |
D |
G |
H |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
18 |
49 |
52 |
DF20 |
29 |
22 |
3.2 |
9 |
21.7 |
54 |
57 |
DF24 |
32 |
26 |
3.2 |
9 |
25.7 |
59 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
29.5 |
65 |
61 |
ZU: Flange panel receptacle with metal-hose (Threaded coupling)
类型 type |
外形及安装尺寸 Dimensions |
||||||
|
A |
B |
C |
D |
M |
H |
L |
DF16 |
26 |
20 |
3.2 |
7.3 |
M18×1.0 |
49 |
52 |
DF20 |
29 |
22 |
3.2 |
9 |
M22×1.0 |
54 |
57 |
DF24 |
32 |
26 |
3.2 |
9 |
M26×1.0 |
59 |
59 |
DF28 |
36 |
30 |
3.2 |
10.5 |
M30×1.0 |
65 |
61 |
