Product Details
Y17 series circular electric connector is widely applied to the circuit connection between various electrical equipment, and adopts a bayonet type connection mode, is convenient to use and is reliable in locking, this series connectors are suitable for connection of a large-current power supply series. In accordance with standard GJB101A-97.
Working temperature: -55℃~+125 ℃
Relative humidity : 40±2℃,reach 90%95%
working air pressure: 4.39KPa~101.33KPa
Salt spray:96h
Working altitude : Sea level 30000m
Vibration: 10~2000Hz,acceleration 196m/s2
Shock:490m/s2
Durability:1000 cycles
Contact resistance and rated current.
Contact diameter (mm) |
Contact resistance |
Rated current |
Φ1.5 |
≤3 |
10 |
Φ5.0 |
≤1 |
75 |
Rated voltage and contact resistance.
Working environment |
Rated voltage |
withstand voltage |
Insulation resistance(MΩ) |
Normal pressure & temperature |
500 |
1500 |
≥1000 |
Wet heat |
300 |
300 |
≥20 |
Hight tempeature |
250 |
— |
≥500 |
Low pressure 4.39KPa |
150 |
250 |
— |

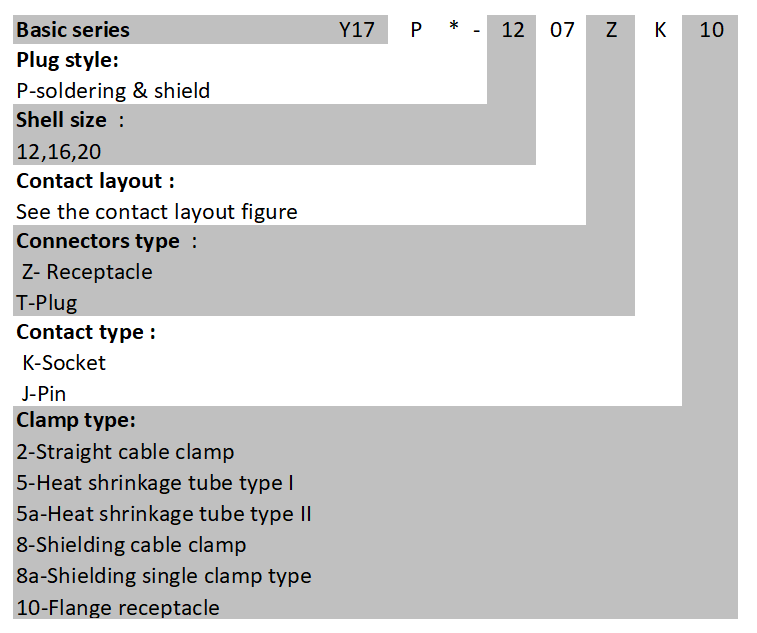

How to order:
Connector Dimensions :

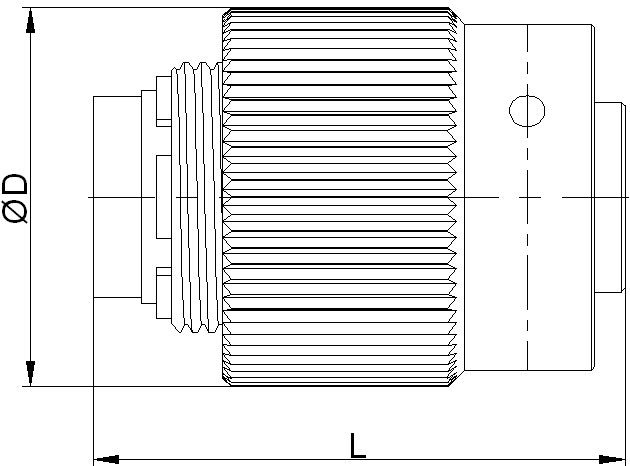

Plug
Shell size |
D |
L |
10 |
22.5 |
31.5 |
12 |
26.5 |
31.5 |
16 |
33 |
31.5 |
20 |
39 |
31.5 |

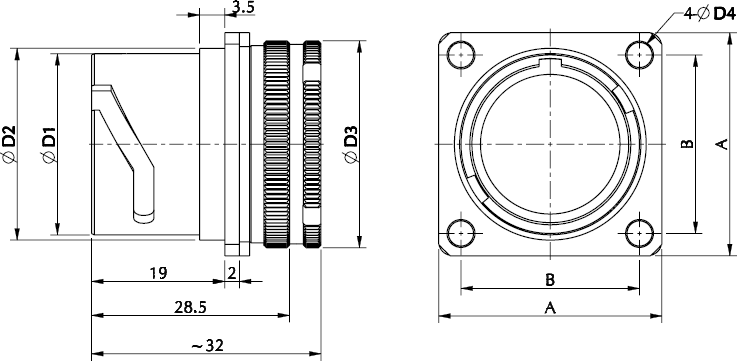

Flange receptacle :Order number: 10
Shell size |
D1 |
D2 |
D3 |
D4 |
A |
B |
10 |
16 |
17.5 |
18.5 |
3.4 |
24 |
18±0.2 |
12 |
20 |
21.5 |
22.5 |
3.4 |
27 |
21±0.2 |
16 |
26 |
27.5 |
29.5 |
3.4 |
32 |
26±0.2 |
20 |
32 |
33.5 |
35.5 |
5.5 |
42 |
33±0.2 |

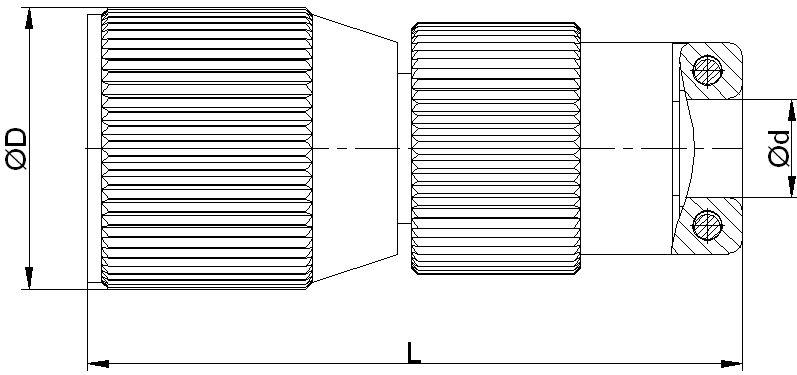

Straight cable clamp Order No:2
Shell size |
D |
d |
L |
10 |
18.5 |
7 |
17 |
12 |
22.5 |
10 |
17 |
16 |
29.5 |
13.5 |
25 |
20 |
35.5 |
20 |
26.5 |

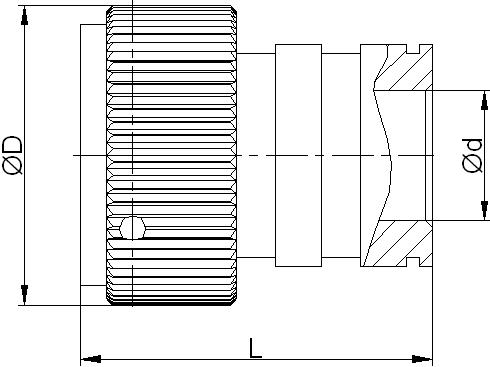

Heat shrinkage tube type I Order No. 5
Shell size |
D |
d |
L |
10 |
23 |
10 |
27 |
12 |
26 |
13 |
30 |
16 |
32 |
18 |
32 |
20 |
38 |
24 |
35 |

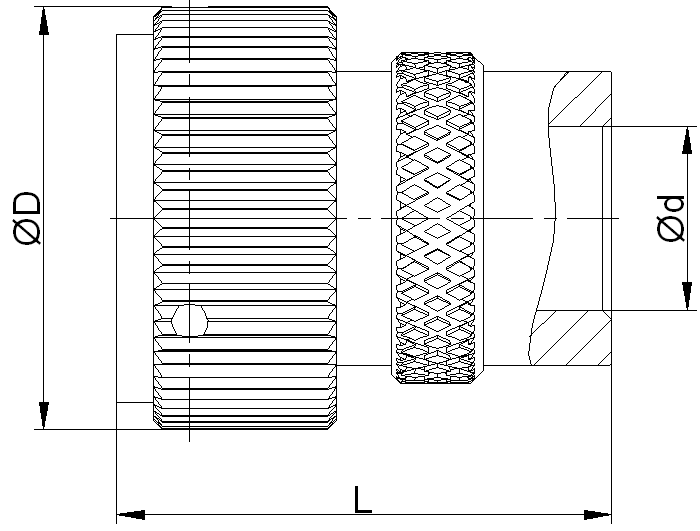

Heat shrinkage tube type II Order No:5a
Shell size |
D |
d |
L |
10 |
23 |
10 |
33 |
12 |
26 |
15 |
33 |
16 |
32 |
18 |
33 |
20 |
38 |
27.7 |
33 |

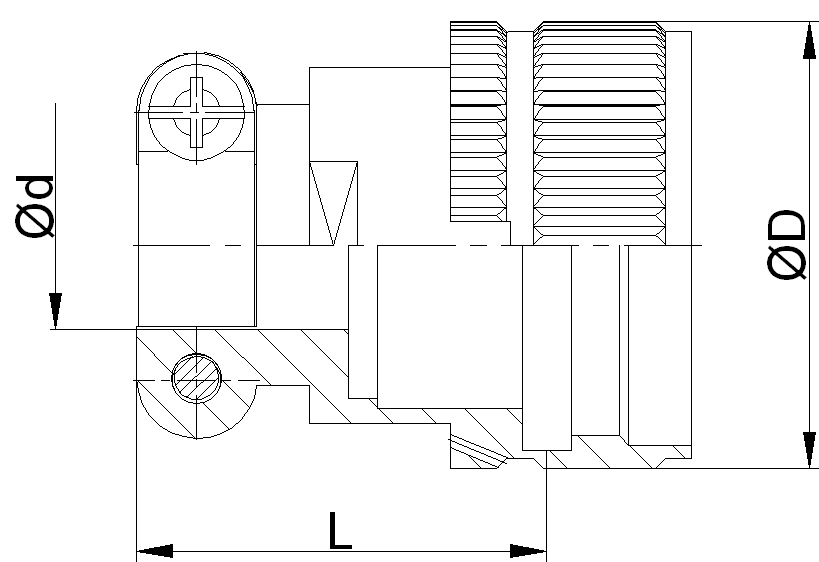

8-Shielding cable clamp
8a-Shielding single clamp type
Shell size |
D |
d |
L |
10 |
20 |
7 |
46.5 |
12 |
23.5 |
10 |
46.5 |
16 |
30.5 |
13.5 |
46.5 |
20 |
36 |
20 |
53.5 |

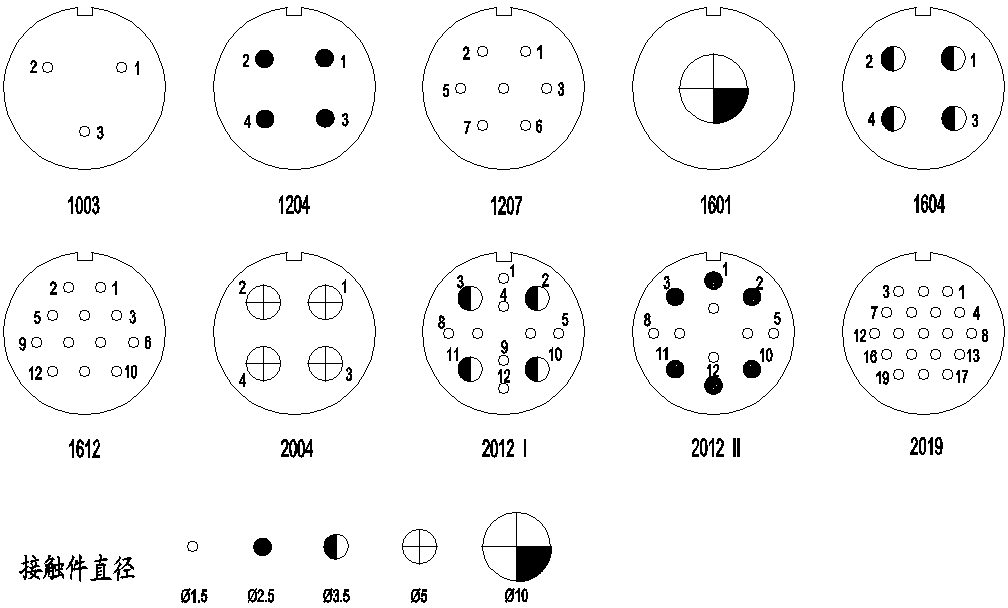

contact layout figure :
