CT8 series circular electrical connectors are in accordance with GJB101A-1997 General Specification for Environmental Rapid Separation of small Circular Electrical Connectors. The connection mode is clamped connection, the contact part termination form is welding, and the Jack contact part adopts stainless steel sheath. It can fully meet the special installation requirements of users. The connector has the characteristics of small volume, light weight, good reliability, strong interchangeable performance, high and low temperature resistance and vibration resistance. It is especially suitable for military applications and can meet the requirements of various complex environments.



Working conditions:

Working temperature:-55 ≤ 125 ℃

Working pressure: 101.33kpa~4.39kpa relative

Humidity: 90% ≤ 98% vibration: 10 ≤ 2000 Hz, acceleration 147m/s

Impact: 980m/s2 salt fog resistance: 500 h;

Number of contact cores: 7 core

Shell material: stainless steel passivated

Contact parts: copper alloy (gold-plated) mounting plate

Insulator: thermoplastic

Mechanical life: 500 times



Main technical characteristics

Contact diameter:  1.0 mm

Contact current: 5A

Contact resistance: ≤ 5mΩ

Voltage resistance: 1000V

Insulation resistance: Normal: 5000 m Ω, High temperature: 100 mΩ, Humidity: 100 mΩ









CT8 series circular electric connector

CT8 series circular electrical connectors are in accordance with GJB101A-1997 General Specification for Environmental Rapid Separation of small Circular Electrical Connectors. The connection mode is clamped connection, the contact part termination form is welding, and the Jack contact part adopts stainless steel sheath. It can fully meet the special installation requirements of users. The connector has the characteristics of small volume, light weight, good reliability, strong interchangeable performance, high and low temperature resistance and vibration resistance. It is especially suitable for military applications and can meet the requirements of various complex environments.



Working conditions:

Working temperature:-55 ≤ 125 ℃

Working pressure: 101.33kpa~4.39kpa relative

Humidity: 90% ≤ 98% vibration: 10 ≤ 2000 Hz, acceleration 147m/s

Impact: 980m/s2 salt fog resistance: 500 h;

Number of contact cores: 7 core

Shell material: stainless steel passivated

Contact parts: copper alloy (gold-plated) mounting plate

Insulator: thermoplastic

Mechanical life: 500 times



Main technical characteristics

Contact diameter:  1.0 mm

Contact current: 5A

Contact resistance: ≤ 5mΩ

Voltage resistance: 1000V

Insulation resistance: Normal: 5000 m Ω, High temperature: 100 mΩ, Humidity: 100 mΩ

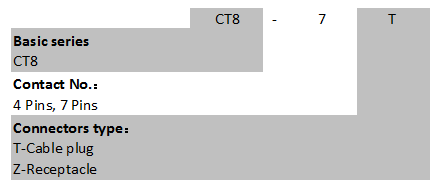

How to order

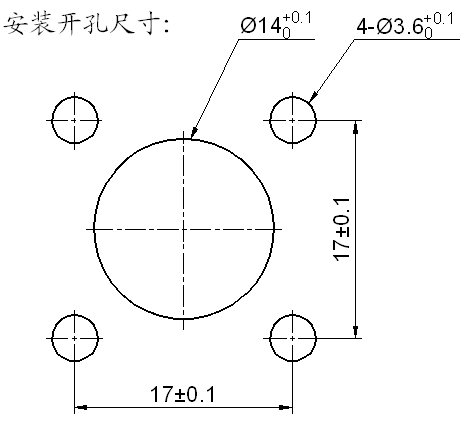

Dimensions:

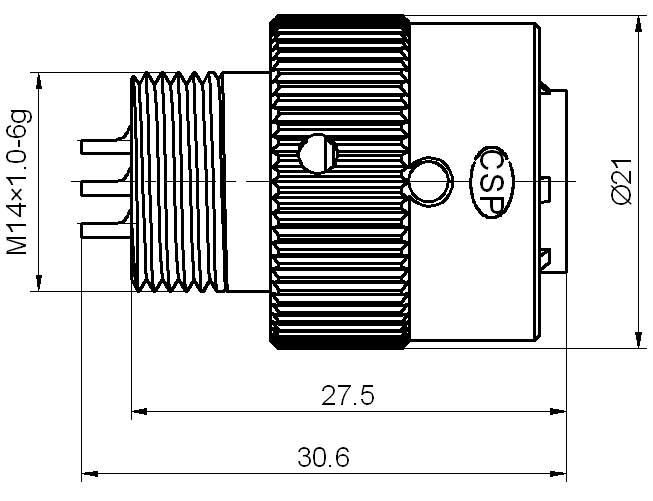

CT8-7T Cable plug

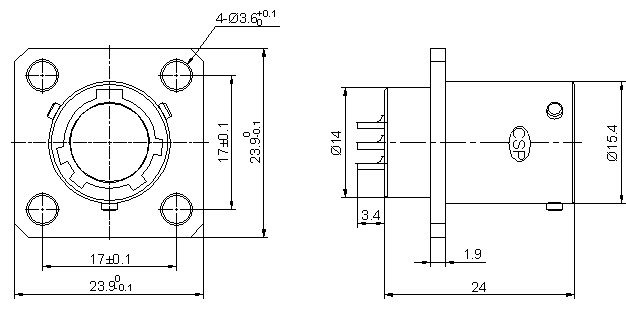

CT8-7Z Receptacle

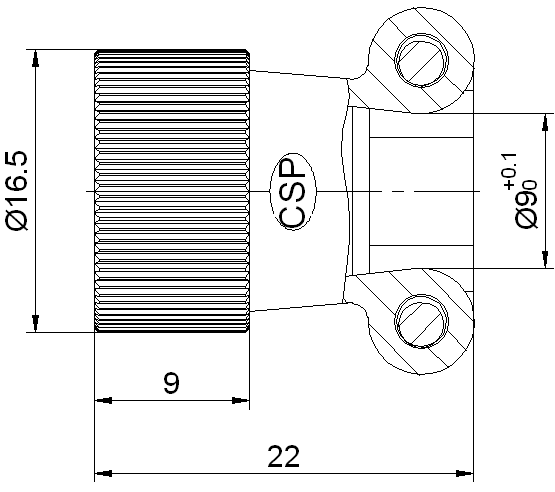

CT8 Cable clamp  ( CT8FJ-9 )

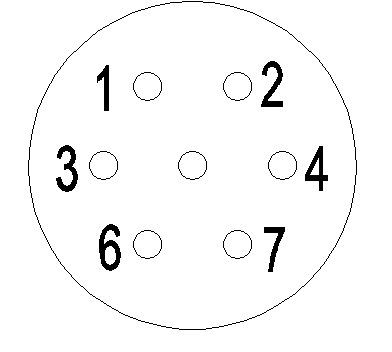

Insert arrangement

Contacts diameter:
