Product Details
GDJ series rectangular high and low frequency optoelectronic integrated electrical connectors conform to Class M connectors in IEC60603-2, which are suitable for electrical connection between cabinets, printed circuit boards and printed circuit boards. The product is composed of plugs, sockets, plugs and sockets with holes reserved in the corresponding position, which can be used to install optical fiber, high current, high frequency coaxial or differential contact parts, to realize the mixing of large and small current, high frequency coaxial and optical fiber products, thus greatly expanding the application range of the product. Realize optoelectronic mixing, modular structure design, different insulator components and shell to form a variety of models, to meet the requirements of different users
working temperature: -40℃~+100℃
relative humidity: 40℃,reach 95%
Insulation resistance: Normal temperature≥1000MΩ, wet heat≥20MΩ
Vibration: vibration frequency is 10Hz-2000Hz,acceleration 147m/s2
Impact: acceleration 490m/s2
Anti-Salt spray:48h
Mechanical life:500 times
Dimensions:

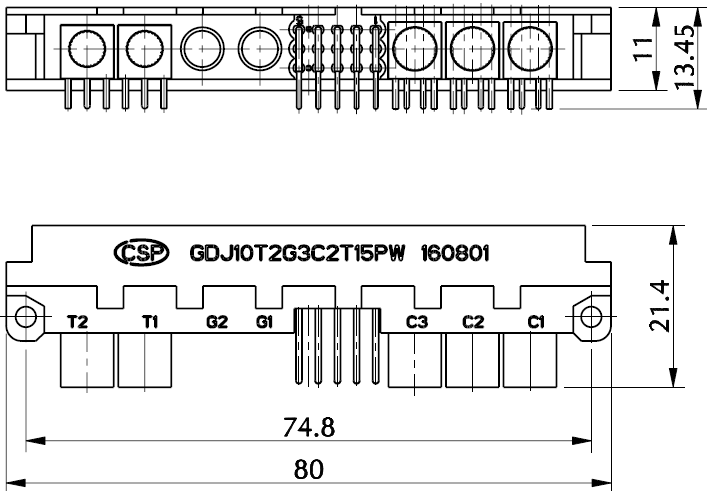

Plug : GDJ10T2G3C2T15PW

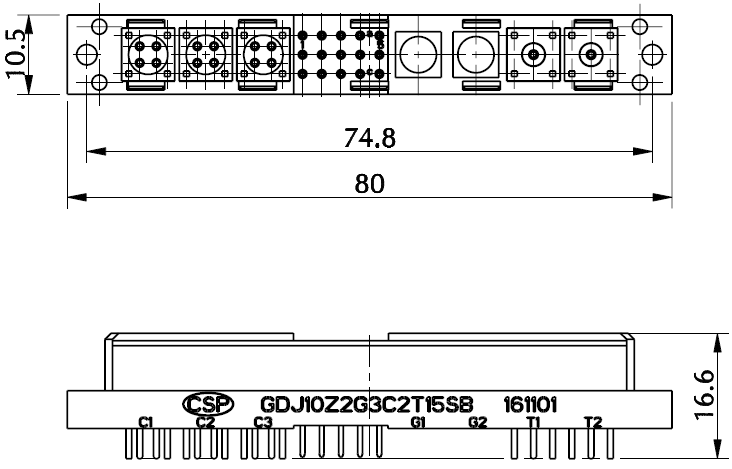

Receptacle : GDJ10Z2G3C2T15SB
